Carling Technologies Toggle Switch | 3 Position, SPDT, Momentary On/Off/On, Screw Terminals | Model 6FC54-73

Carling Technologies Toggle Switch – 3 Position, SPDT, Momentary On/Off/On, Screw Terminals (Model 6FC54-73) Spring Loaded

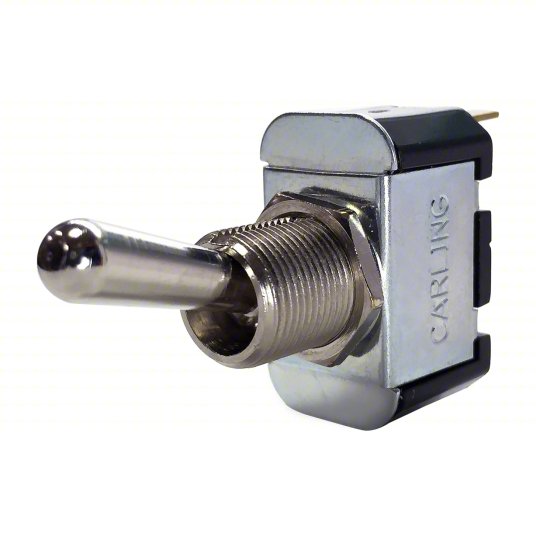

Control your circuits with precision using the Carling Technologies 6FC54-73 toggle switch. This 3-position SPDT switch features a Momentary On/Off/Momentary On function, durable metal actuator, and screw terminal connections for quick and secure installation.

Key Features:

• Momentary On/Off/On Function – Ideal for reversing applications and temporary circuit engagement
• SPDT Contact Form – Single-pole double-throw design offers versatile control
• Screw Terminals – Secure connection points for easy wiring
• Metal Actuator – Rugged 0.68" toggle with silver finish for long-lasting performance

Specifications:

• Brand: Carling Technologies
• Series: FAC
• Manufacturer Part Number: 6FC54-73
• Model/Item Number: 4X203
• Switch Function: Momentary On/Off/Momentary On
• Contact Form: SPDT
• Number of Positions: 3
• Number of Connections: 3
• Contact Rating: 15A @ 125V AC, 10A @ 250V AC
• Horsepower Rating: 3/4 HP
• Terminal Type: Screw Terminals
• Actuator Material: Metal
• Actuator Length: 0.68"
• Panel Mount Hole Diameter: 0.5"
• Stem Diameter: 0.47"
• Stem Thread Size: 6-32 NC-2
• Operating Temperature Range: 0°F to 150°F
• Overall Dimensions: 2.17" H x 0.63" W x 1.13" D
• Includes: Hex Nut and Ring Nut
• IP/NEMA Rating: Not Sealed / No Enclosure
• Illumination: Non-Illuminated
• Country of Origin: Mexico

Pairs well with: Replacement Electrical Parts

Designed for use in control panels and electrical enclosures, the Carling 6FC54-73 toggle switch delivers dependable momentary switching performance. Whether for reversing polarity or controlling motors, it’s the reliable choice for demanding applications.
