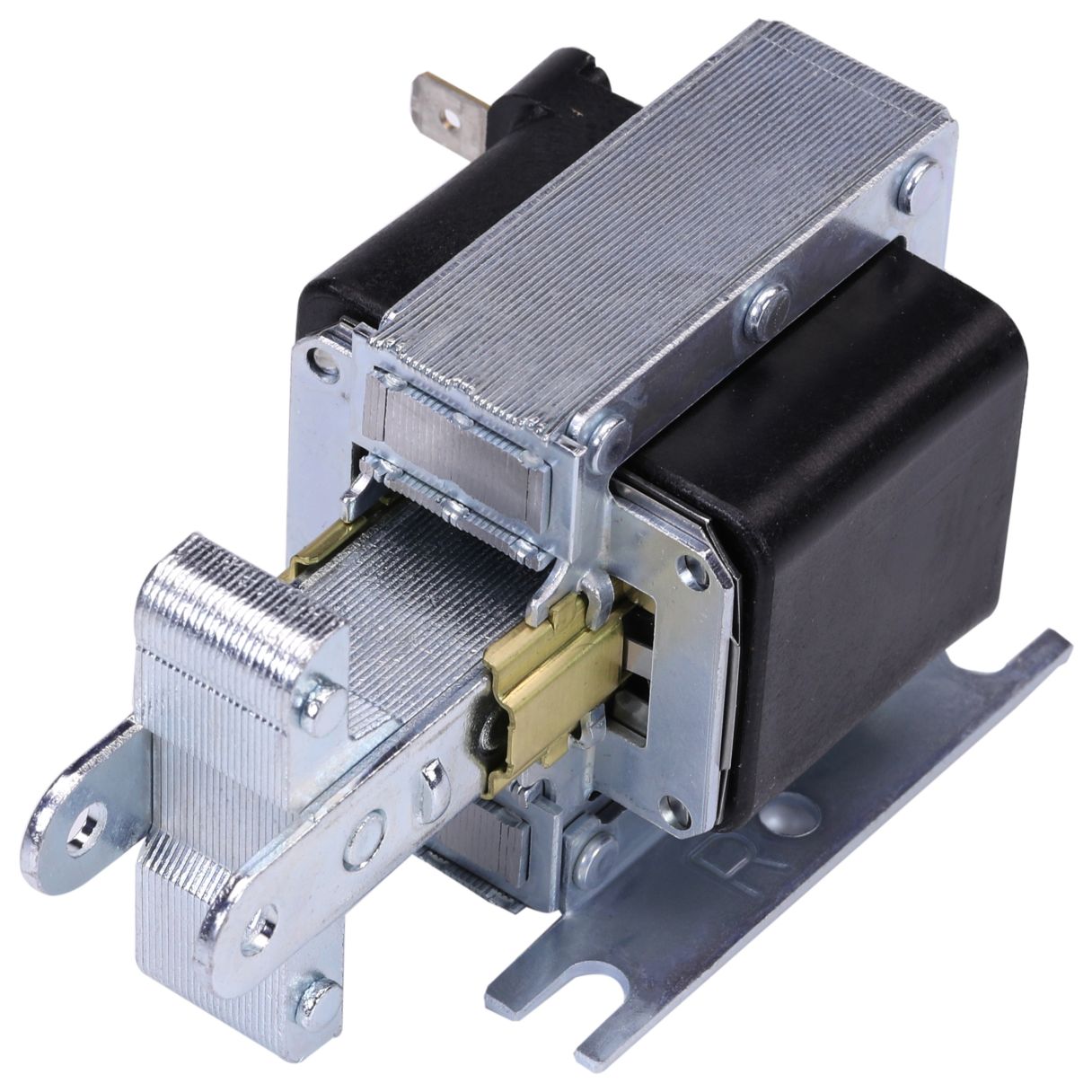

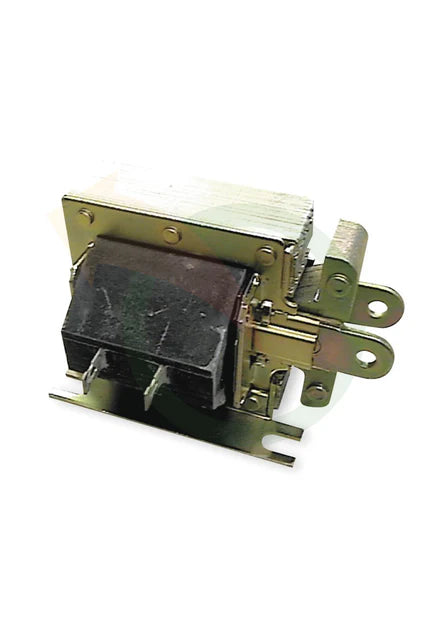

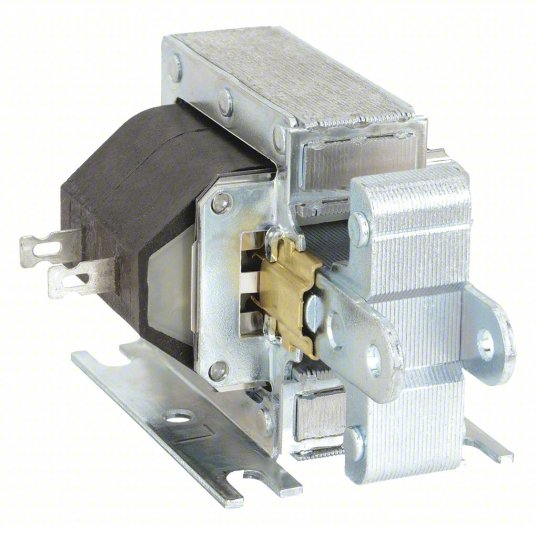

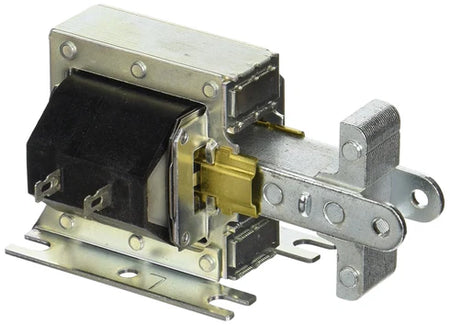

Dormeyer 2005 M-1 Laminated Solenoid – 120V AC, Pull-Type, Continuous Duty – SKU: LS001

Dormeyer 2005 M-1 Laminated Solenoid – 120V AC, Pull-Type, Continuous Duty – SKU: LS001
Get reliable, long-lasting performance with the Dormeyer 2005 M-1 Laminated Solenoid. Designed for continuous-duty operation, this pull-type solenoid is ideal for replacement in a wide range of heating and appliance systems. Built from durable laminated steel and equipped with a corrosion-resistant plunger, it's one of the most common solenoids used in the industry.

Key Features:
✅ Pull-Type Operation – Designed for continuous-duty applications in HVAC and heating systems
✅ Wide Stroke Range – Supports 1/8" to 1" stroke for versatile actuation
✅ Strong Pull Force – Delivers 64 to 128 ounces of force for dependable activation
✅ Durable Construction – Laminated steel frame with corrosion-resistant materials
✅ Quick Mounting – Foot-mount with two-hole layout for easy installation
✅ RoHS Compliant – Meets environmental and safety standards

Specifications:
📌 Manufacturer: Dormeyer
📌 SKU: LS001
📌 Model: 2005 M-1
📌 Voltage: 120V AC @ 60Hz
📌 Solenoid Type: Laminated, Pull-Type
📌 Duty Cycle: Continuous
📌 Coil Resistance: 20.5 Ohms
📌 Stroke Range: 1/8" to 1"
📌 Pull Force: 64 oz to 128 oz
📌 Seated Current: 0.43 Amps
📌 Current @ Max Stroke: 4.90 Amps
📌 Seated Power: 17.9 Watts
📌 Mounting Hole Spacing: 2" (Length) x 1 3/8" (Width)
📌 Terminal Type: Solder Lug
📌 Dimensions: 2 1/2" L x 2 1/16" D x 1 13/16" W
📌 Coil Insulation: Class A
📌 Compliance: RoHS

Common Applications:

• Wood and pellet stove feed systems

• HVAC actuators and damper controls

• Home appliance motor controls

• Commercial and industrial process automation

Why Choose the LS001?
This solenoid offers dependable pull performance, low seated current, and a wide stroke range—perfect for high-cycle environments. Whether replacing an older part or upgrading a system, the Dormeyer 2005 M-1 is a trusted industry-standard component.
