Dormeyer 2536-M-1 Laminated Solenoid – 120V AC, Pull-Type, Continuous Duty – SKU: LSC01

Dormeyer 2536-M-1 Laminated Solenoid – 120V AC, Pull-Type, Continuous Duty – SKU: LSC01

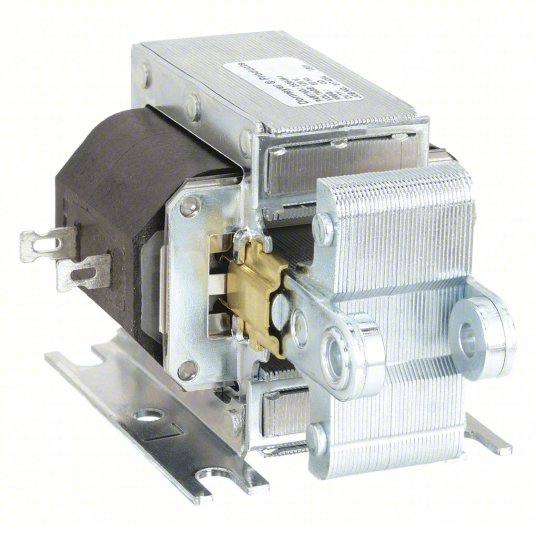

Built for high-performance applications, the Dormeyer 2536-M-1 laminated solenoid is engineered for continuous duty with a powerful pull force range and rugged construction. This industry-standard pull-type solenoid is ideal for industrial, HVAC, and appliance use where reliability under heat and load is critical.

Key Features:

✅ Heavy-Duty Pull-Type Solenoid – Continuous duty cycle for demanding applications
✅ Powerful Pull Force – Ranges from 88 oz to 168 oz over a 1” stroke
✅ Durable Construction – Laminated steel frame with corrosion-resistant plunger and brass guides
✅ Class A Coil Insulation – Ensures thermal protection and durability
✅ Quick Mount Footprint – Mounting holes on 2" x 1 5/8" centers
✅ RoHS Compliant – Built to meet modern safety and environmental standards

Specifications:

📌 Manufacturer: Dormeyer
📌 SKU: LSC01
📌 Model: 2536-M-1
📌 Type: Laminated Solenoid, Pull-Type
📌 Voltage: 120V AC @ 60Hz
📌 Duty Cycle: Continuous
📌 Stroke Range: 1/8" to 1"
📌 Pull Force Range: 88 oz to 168 oz
📌 Coil Resistance: 14.9 Ohms
📌 Seated Current: 0.48 Amps
📌 Current @ Max Stroke: 6.50 Amps
📌 Seated Power: 19 Watts
📌 Terminal Type: Solder Lug
📌 Mounting Hole Spacing: 2" x 1 5/8"
📌 Dimensions: 2 1/2" L x 2 1/16" D x 2 1/16" W
📌 Country of Origin: USA
📌 Compliance: RoHS

Pull Force by Stroke:

• @ 1/8" Stroke: 65 oz

• @ 1/4" Stroke: 35 oz

• @ 3/8" Stroke: 20 oz

• @ 1/2" Stroke: 13 oz

• @ 5/8" Stroke: 5 oz

• @ 3/4" Stroke: 3 oz

• @ 1" Stroke: 1 oz

Applications:

• Pellet stove feed systems

• HVAC damper actuation

• Industrial automation

• Mechanical locking mechanisms

• Home appliance actuation
